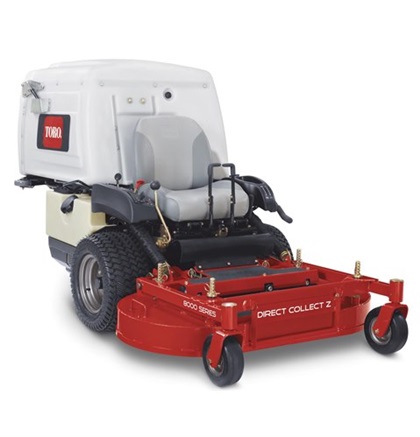

48″ (121.9cm) Z Master 8000 Direct Collect Z

48″ (121.9cm) Z Master 8000 Direct Collect Z

Every landscape professional has customers that are particular about the way their properties look after they?ve been mowed. Often the properties are equally demanding, with short runs, tight turns, trees, flowerbeds, you name it. For high-end properties, a clean, manicured look is everything.

The Z Master? 8000 Series Direct Collect Z gives you that and much more. A powerful blower moves more air, allowing large volumes of material to be thrown into the hopper. The rear-discharge deck lets you trim on either side while keeping flower beds and walkways clipping-free. And the high-capacity collection system helps extend mowing time. With ground speeds up to 11.3 km/h, the 8000 series is the answer for a perfect cut in less time.

Enquire Now
Category:

Description

Features

Kohler? EFI
Kohler Closed-Loop EFI engine provides the highest productivity with the lowest operating cost and reduced carbon footprint. It?s the easiest, most reliable starting engine and backed by Kohler?s unlimited hour three year commercial warranty. Engine mounted in-line with frame to allow for superior engine cooling air-flow, hence increasing the engine life.

Toro Cutting and Collection Technology
Exclusive fill-reduction system provides the most versatile cutting system in a dedicated bagging machine. The floating deck follows ground contours to virtually eliminate scalping and the 11.8 cm deep deck processes taller grass at higher speeds without clogging. The unique adjustment screen also prevents clogging in wet and blowout in dry conditions to provide a clean look.

Commercial Design and Heavy-Duty Construction
The superior 50 hp gearbox with spiral-bevel cut gears assembly utilises premium Timken tapered roller bearings and is independently sealed at each box to prevent cross contamination or loss of lubricant. The integrated seal guards on output shafts protect and keep debris away.

Drive Control System Design
The drive control system design utilises the latest hydro-drive technology for smooth and precise control at more productive mowing speeds. The control interface allows for increase control and consistent feel throughout the operating range. The drive system is equipped with new high performance 18 cubic inch H-Series Motors and reduced friction 12 cc Pumps to improve control feel.

Swing Away Fuel Tank
The fuel tank pivots out for easier engine servicing.

Enhanced Bagging & High Capacity
Large blower to move more air allowing grass to stand up for a superior cut and the 9.5-bushel hopper means less time emptying and more time mowing. Exclusive baffle design fills evenly back to front for maximum efficiency.

Specifications

Engine
25 hp (18.6 kW) Kohler? Command Pro EFI PS-ECH730-3064 747 cc

Cutting Width
121.9 cm

Deck Material
Full-floating rear-discharge cutting deck with heavy-duty gear-driven spindle assemblies.

Deck Type
Rear discharge

Hydraulic Drive System
Dual Hydro-Gear 12 cc variable-displacement pumps power, Hydro-Gear planetary reduction motors

Fuel Capacity
28.39 litres

Maximum Forward Speed
11.3 km/h

Drive Tyres
18″ x 10.5″ – 10″ MultiTrac? C/S

Caster Tyres
8″ x 3″ – 4″ Semi Pneumatic (front)

Height of Cut
1″ – 4″

Clutch
6″ brake band

Blades
2 blades at 25″

Blade Tip Speed
18,500+ ft/min

Carrier Frame Construction
Channeled and fully welded 1.5″ x 1.5″ x 0.1875″ wall tubing

Weight**
531 kg

**traction unit & deck.

Warranty*
2 years/1200 hours limited warranty
