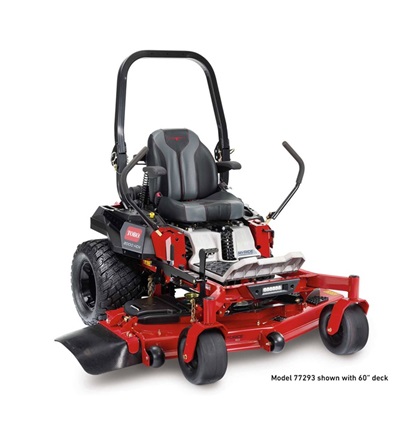

52″ (132cm) Z Master 2000 Series MyRide HDX (77290)

52″ (132cm) Z Master 2000 Series MyRide HDX (77290)

Take comfort to the next level with the 132 cm (52?) Z-Master 2000 HDX zero-turn mower with MyRIDE? Suspension System. Built with a power-packed 23.5 hp* Kawasaki? FX engine with heavy-duty air cleaner, commercial-grade hydros, 23? Kenda Reaper Tyres, and a 7/10-Gauge High-Strength Steel TURBO FORCE? cutting deck for commercial-grade productivity. With the customisable MyRIDE? Suspension System to isolate bumps and vibrations, plus a USB port, cup holder, and storage space, you?ll stay comfortable ? even on the longest days.

Enquire Now
Category:

Description

Features

23.5 HP* Kawasaki? Engine
Enjoy top-line performance from the professional-grade 23.5 HP* Kawasaki engine.

58.42cm (23″) Kenda Reaper Drive Tyres
Large rear-drive tyres for a no-quit push to finish strong.

Commercial-Grade Hydro-Gear ZT-3800
Fast, clean work with commercial-grade ZT-3800 hydros.

MyRIDE? Suspension System
Save your body from the toughest terrain with the MyRIDE? Suspension System.

TURBO FORCE? Cutting Deck
Enjoy years of reliable performance with a fully tubular frame and 7/10-gauge steel deck.

Customise Your Ride
Customise your ride with optional lights, bucket holder, trimmer mount, baggers, mounts, and up to 20 attachments.

Specifications

Engine
23.5 hp* Kawasaki FX730V 747cc with Heavy Duty Air Cleaner

Fuel Capacity
26.5 litres

Cutting Width
132 cm (52″)

Blade Tip Speed
18,500+ ft/min

Caster Tyres
33 cm x 16.5 cm x 15.2 cm (13″ x 6.5″ x 6″) Pneumatic

Clutch
Electromagnetic

Deck Design
12.7 cm (5?) deck depth, 7/10-Gauge High-Strength Steel TURBO FORCE? w/ bull-nose bumper

Discharge Chute
Rubber

Drive Tyres
Kenda K3012 58.4 x 26.7 ? 30.5 cm (23? x 10.5? ? 12?)

Engine Displacement
726cc

Foot Operated Height of Cut
Standard

Ground Speed
Up to 17.7 km/h

Height of Cut
3.81 cm ? 12.7 cm in 0.635 cm increment
1.5? ? 5? in 0.25? increments

Ignition
Electric

Lighting
LED Headlights

ROPS
Folding

Comfort Platform
MyRIDE? Suspension System

Shocks
1 center / 2 rear

Seat
High-Back Comfort with Armrests

Adjustability
5 point adjustment on rear shocks

Spindle Housing
20.3 cm Diameter Aluminium

Steering Controls
3.6 cm Diameter Grips; Adjustable, Dampened

Tool-mounting Capability
Side Console / Rear Guard Ready

Transmission
Hydro-Gear ZT-3800

Warranty
4yr/750 hr**
