CMH1401H

CMH1401H

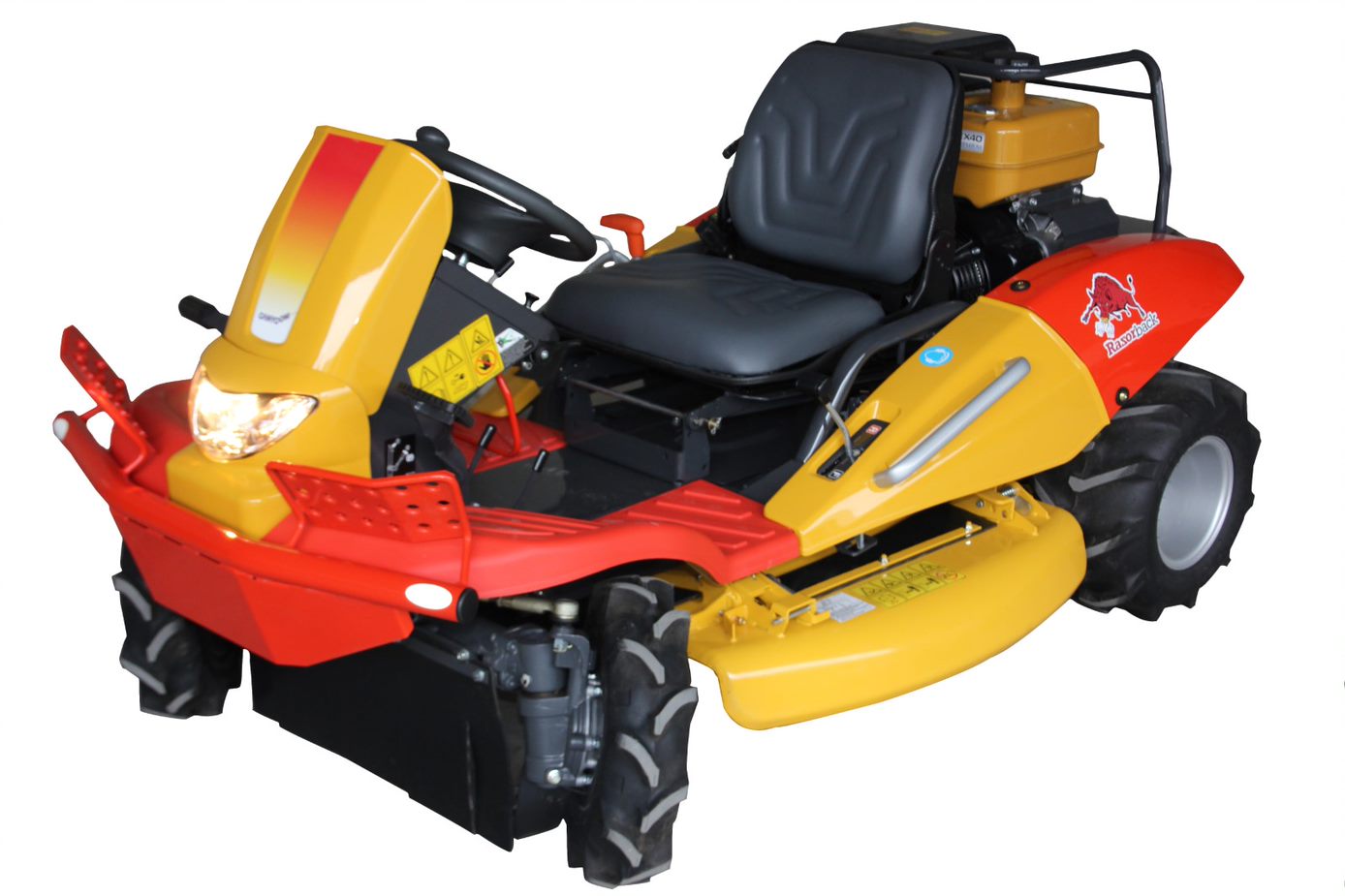

The CM1401H 4WD Razorback has all the features you?d want on any all terrain mower. At the heart of the Razorback 4WD transmission is a mechanical drive shaft that runs from the rear diff to the front axle which drives the front planetary hubs, giving you the ultimate torque at the front of the mower ? similar to a conventional off road 4WD vehicle. This is an incredible all terrain mower worthy of more than a sideways glance.

With a low centre of gravity and the ability to cut through heavy brush, this machine can go places most of its contemporaries cannot. The selectable diff lock, high and low ratio gearbox and the shaft driven cutting platform means this 2WD mower can cope with tough undergrowth that would kill a normal mower. The Honda engine gives you an added sense of reliability.

The low seat height, low centre of gravity and ?limited slip? diff lock allows the CM1401H to mow in rough terrain with complete safety and operator comfort. It is suitable for mowing grassed slopes and will do the work that most conventional ride on mowers struggle to accomplish. The safety factor is perhaps the greatest attribute of the Razorback CM1401H. So if you?re looking for a mower that will stay upright on slopes and won?t stop when it hits rough terrain, then this is the machine for you! The blade system uses the ?Heartfelt Hirosaki? blades that are bolted to the mower ? they are not using the tool-less system like the Big Twin engined units.

Enquire Now
Category:

Description

Features

2WD Honda GX390 engine
Chain driven over head camshaft engine
High & low ratio gearbox
Limited slip diff lock selected from the dashboard
Shaft driven cutter deck train
Variable speed Hydrostatic transmission
Cyclone air cleaner system
Hand & foot control
Drum brake
Park brake
Ultra low seat position creating more stability for hillside mowing
Easy and convenient height of cut control
Low centre of gravity for amazing stability on slopes and rough terrain
Compact mowing width for maneuverability and access
Tight turning radius for mowing around tre

Specifications

Engine – 12HP Honda GX390
Rated Net Output – 11.7HP @3600rpm
Weight (fuel tank full) – 320 Kg
Gradeability – 15 degrees
Stability Angle – 25 degrees left & right
Max Speed – 13.2 km/h
Min turning radius – 1800mm
Cutting Width – 965 mm
Cutting Height – 0 ? 150 mm (21 heights)
Drive Train – 2 Wheel Drive
