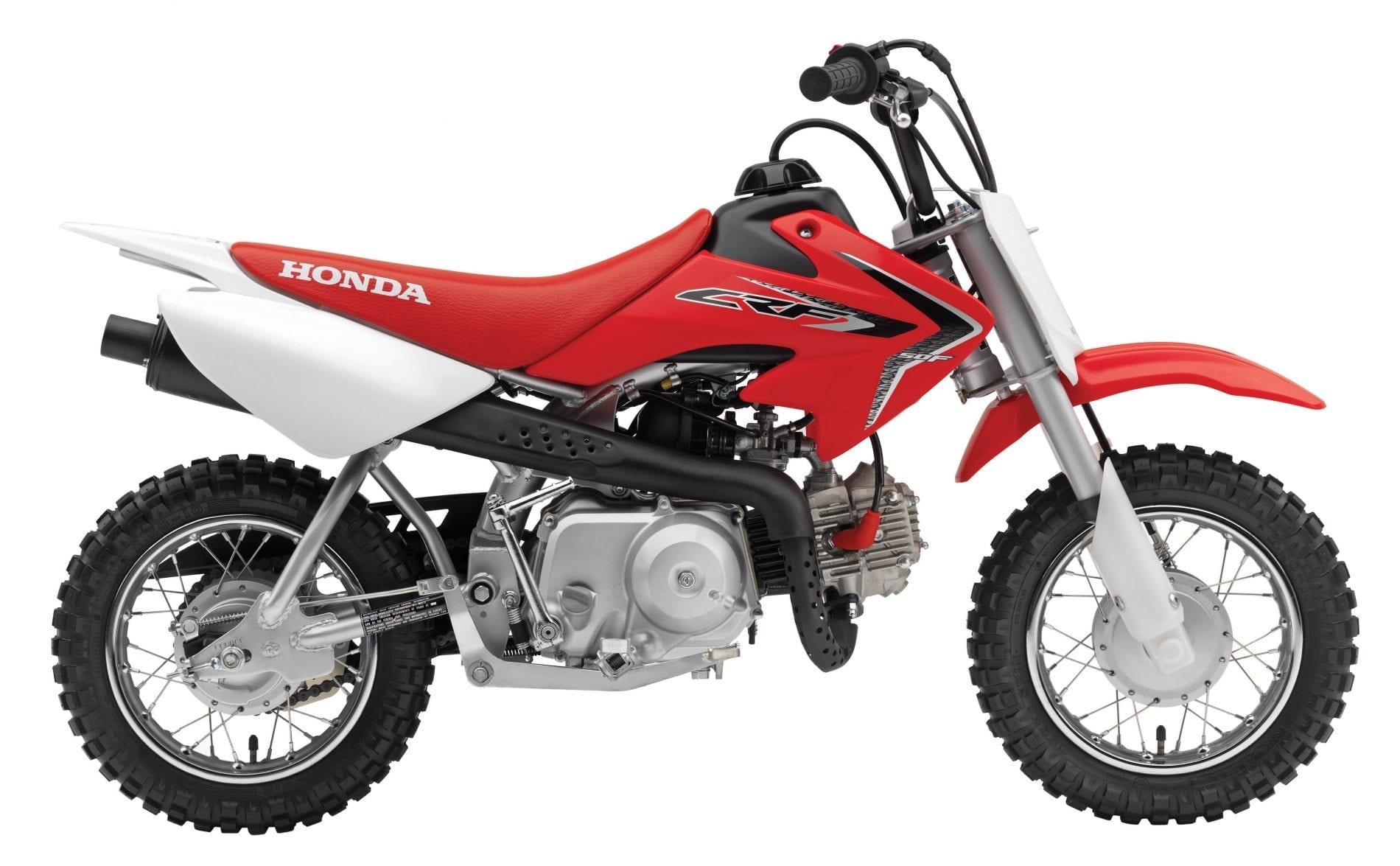

Honda – CRF50F

Honda – CRF50F

With its single-shock rear suspension, inverted fork and bulletproof 49cc four-stroke engine, the CRF50F is Honda’s best-selling off-road machine.

Enquire Now
Category:

Description

CHASSIS/SUSPENSION

Front suspension spring and damping rates for optimum rider comfort and bump absorption

High-tensile steel frame and swingarm offer excellent balance of strength and compliance

Inverted telescopic fork offers a plush 89mm of suspension travel

Single-shock rear suspension provides 71mm of well-damped travel and is mounted to a reinforced swingarm

28-spoke, 254mm diameter wheels with die-cast–aluminum hubs look great, provide excellent maneuverability and offer smooth ride quality

Powerful, lightweight front and rear drum brakes

Wide, long-wearing off-road tires offer excellent traction

ENGINE/DRIVETRAIN

Dependable 49cc SOHC four-stroke engine develops smooth, easy-to-use power

10.0:1 compression ratio for good performance

Maintenance-free CD ignition and automatic cam-chain tensioner

13mm piston-valve carburetor offers excellent fuel consumption and throttle response throughout the rpm range

Smooth-shifting three-speed transmission and automatic clutch offer simple operation and easy takeoffs

Durable #420 drive chain offers dependable operation and low maintenance

USDA-qualified muffler/spark arrester is efficient and quiet

Closed crankcase ventilation system safeguards against engine oil contamination



Specifications

ENGINE

  • ENGINE TYPE
    49cc air-cooled single-cylinder 4-stroke
  • BORE AND STROKE
    39 x 41.4mm
  • COMPRESSION RATIO
    10:1
  • VALVE TRAIN
    SOHC; 2-valve
  • CARBURATION
    13mm piston-valve
  • IGNITION
    CDI
  • TRANSMISSION
    3-speed with automatic clutch
  • STARTER
    Kick
  • FINAL DRIVE
    #420 chain
FRAME

  • DIMENSIONS
    1,302mm x 581mm x 774mm
  • WHEELBASE
    911mm
  • RAKE (CASTER ANGLE)
    25°
  • TRAIL
    32mm
  • SEAT HEIGHT
    548mm
  • GROUND CLEARANCE
    146mm
  • FUEL CAPACITY
    2.6 lites (including 0.7 litre reserve)
  • KERB WEIGHT
    50kg
SUSPENSION

  • FRONT
    Inverted telescopic fork; 87mm stroke
  • REAR
    Single shock; 70mm travel
BRAKES

  • FRONT
    80mm leading drum
  • REAR
    80mm leading drum
TYRES

  • FRONT
    2.50 10-inch
  • REAR
    2.50 10-inch
WARRANTY

  • WARRANTY PERIOD
    6 months

Related products

  •
    Quick View

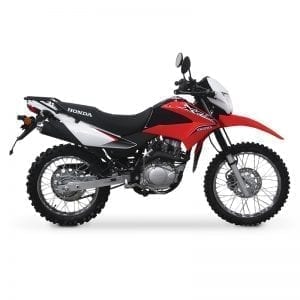

    Off Road Bikes Honda – XR150L

    Looking for a rugged and reliable two-wheeled farm machine? Look no further than Honda’s newly announced XR150L.

    The XR150L is durable, reliable and safe with comfortable suspension and a high performance 150cc engine. It is an essential piece of equipment for any farm.

  •
    Quick View
    Off Road Bikes Kawasaki Stockman 250

    Designed in Australia for Australia, the Stockman is a real world performer that was born and bred for Australia’s uniquely harsh conditions out on the land. Featuring 50cc’s more engine capacity than any other ag-bike in the market and tougher-than-leather build quality and reliability, the Stockman is a thoroughbred workhorse that will keep working hard long after the cows have come home and left again.

  •
    Quick View
    Off Road Bikes Honda – CRF450R

    Honda’s incredible CRF450R just keeps getting better and better. If you’re looking to dominate the 450 class, this is the bike you want!

    The 2020 CRF450R puts more engine-management choices at the fingertips of racers with the addition of Honda Selectable Torque Control (HSTC) – making it the ultimate holeshot taking, podium-winning powerhouse that will leave all others in the dust.

    HSTC was developed through HRC’s worldwide racing effort, the system maximises rear-tire hook-up to keep all of the Unicam® engine’s horsepower driving the bike and rider forward, improving racing success regardless of track conditions.

    In keeping with racing-body regulations, the system measures rate of rpm increase and adjusts delivery accordingly and a handlebar-mounted switch enables selection from three levels of delivery, which is most in class. In addition, the CRF450R’s front-rear balance is refined and handling is improved thanks to internal suspension updates and a new battery position that lowers the machine’s centre of gravity. Improved rear-brake pad performance and durability, and the exclusive specification of Dunlop Geomax® MX3S tyres round out a machine that’s ready to take 450 riders to the next level.

  •
    Quick View

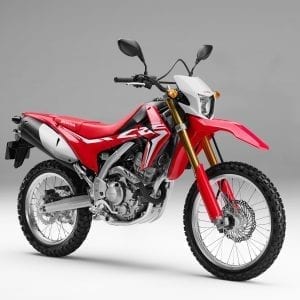

    Off Road Bikes Honda – CRF250LA
