Description
THE NEXT GENERATION

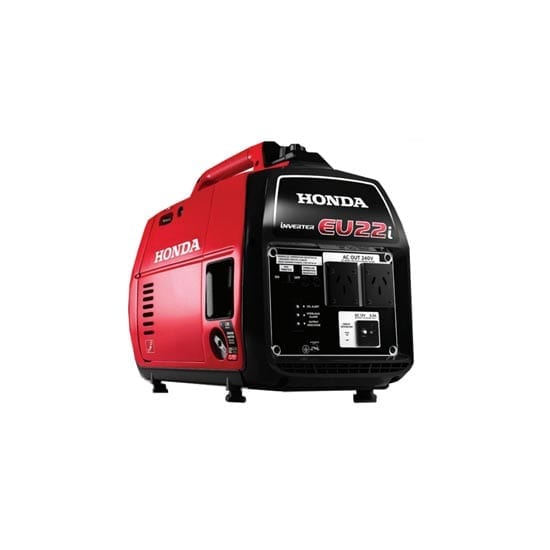

The world’s best-selling leisure generator just got a whole lot better! With 200W MORE power, the all-new Honda EU22i Generator can power more than ever before. Used for leisure, back-up power and for the job site, it really packs a punch!
4WD TOURING HIT THE ROAD WITH THE EU22I
4WD Touring have been testing out our new Honda EU22i in the Vic High Country. With 200W more under the bonnet, it can power even more gear on the road!
FOR PLAY
Aussie campers asked for more power, so Honda gave the people what they wanted. – maximum output of 2200W to power an entire camper van – low fuel consumption for cost efficiency – portable weight and size for easy travel – whisper-quiet operation to avoid waking campers
FOR WORK
The EU22i starts first time, every time with Honda’s reliable one pull easy start system. Your back will thank you! – increased diameter of oil filler for improved draining & catching of oil – low fuel consumption for cost efficiency – runs consistently on a full fuel tank for an 8 hour day *with eco-throttle switched on at 1/4 output – delivers better than commercial quality electricity
FOR HOME
The EU22i is a reliable source of electricity when the power goes out. – environmentally friendly with low emissions – low fuel consumption for cost efficiency – Oil alert protects the engine by shutting down if a low oil pressure is reached – up to 8* hours of continuous operation on a full fuel tank *with eco-throttle switched on at 1/4 output
4 STROKE ADVANTAGE
The EU22i has Honda’s advanced 4-Stroke GXR120 engine, which is 20% larger in capacity than the EU20i Generator. The GXR120 has a maximum output of 2200W and up to 8 hours of continuous operation on Eco-Throttle+, 4 litre fuel tank and whisper-quiet operation.
Specifications
ENGINE
ENGINE: GXR120
DISPLACEMENT: 121(cc)
IGNITION SYSTEM: Transistor
OIL ALERT: Yes
STARTING SYSTEM: Recoil
STOPPING SYSTEM: Ignition primary circuit ground
RECOMMENDED FUEL: Unleaded
FUEL TANK CAPACITY (LITRES): 3.6
CONTINUOUS OPERATING HOURS: 8hrs*
OPERATING NOISE LEVEL (AT 4M): LwA 91dB(A)**
DIMENSIONS
DIMENSIONS (LXWXH): 511 x 290 x 425 (mm)
DRY WEIGHT (KG): 21kg
FEATURES
MAXIMUM AC OUTPUT: 2200VA
RATED AC OUTPUT: 1800VA
DC OUTPUT (GENERATOR/CHARGER): 8.3A
BATTERY CHARGING: Yes
FREQUENCY METER: No
VOLT METER: No
GENERATOR TYPE: Multipole revolving magnetic field type (inverter)
RATED VOLTAGE: 240 (V)
RATED FREQUENCY: 50 (Hz)
FUEL GAUGE: No
AC CIRCUIT BREAKER: Yes
DC CIRCUIT BREAKER: Yes
AUTO THROTTLE: Eco-throttle
AUTO CHOKE: No
LARGE CAPACITY AIR CLEANER: Yes
LARGE CAPACITY FUEL TANK: Yes
LARGE CAPACITY MUFFLER: Yes
PILOT LAMP: Yes
AIR CLEANER: Dual element type
PARALLEL OPERATIONS CONNECTION PORTS: Yes
PARALLEL OPERATIONS CONNECTION CABLE: Optional
4 WHEEL DOLLY KIT: No
CONDITION: **With eco-throttle switched on at 1/4 output. **LwA refers to sound power level and is measured at rated load, 4 metres from the product in a closed anechoic room. This figure can only be compared to other LwA models, not dB models which are measured 7 metres from the product.
