Description

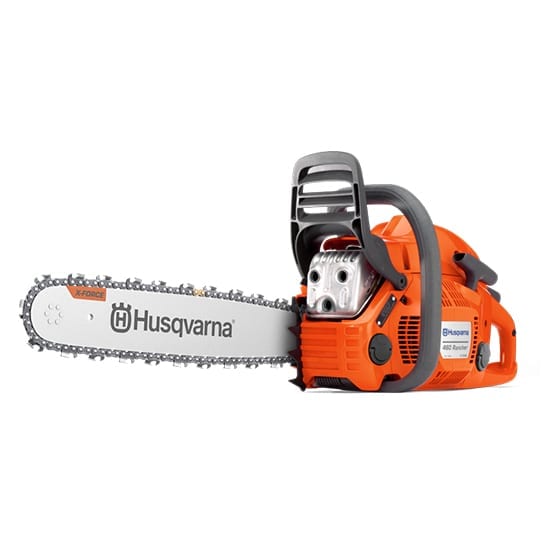

A robust all round petrol powered chainsaw, ideal for demanding cutting jobs where more power is required for a longer guide bar.
Equipped with X-Torq® engine with high torque over a wide rpm range. The saw’s body is ergonomically designed allowing for easy handling of the saw’s power. Further features include Smart Start®, Air Injection, LowVib® and combined choke/stop control.
Bar length (inch)
20″
Cylinder displacement
60.3 cm³
Power output
2.7 kW
Weight (excl. cutting equipment)
5.8 kg
FEATURES
Want to take a closer look? Learn more about the product in depth by exploring its design and features.
Air Injection
Extends the interval between filter cleaning, improving efficiency and increases engine life.
X-TORQ
Delivers lower fuel consumption and reduced exhaust emission levels in accordance with the world´s most stringent environmental regulations.
Two mass principle
Effectively minimising vibrations by isolating the engine from the handles reducing operator fatigue.
Adjustable oil pump
Adjustable oil pump allows you to adjust chain lubrication to suit all working applications.
Engine
Cylinder displacement – 60.3 cm³
Power output – 2.7 kW
Maximum power speed – 9000 rpm
Idling speed – 2700 rpm
Spark plug Champion – RCJ7Y, NGK BPMR7A
Electrode gap – 0.5 mm
Torque, max. – 3.4 Nm
Fuel consumption – 437 g/kWh
Fuel consumption – 1.16 kg/h
Equipment
Bar length (inch) – 20″
Recommended bar length, max – 24 in
Recommended bar length, max – 60 cm
Recommended bar length, min – 13 in
Recommended bar length, min – 33 cm
Chain speed at max power – 20 m/s
Chain speed at 133% of maximum engine power speed – 26.6 m/s
Dimensions
Weight (excl. cutting equipment) – 5.8 kg
Lubricant
Oil tank volume – 0.32 l
Oil pump type – Automatic
Oil pump capacity Max – 17 ml/min
Oil pump capacity Min – 6 ml/min
Sound and Noise
Sound power level, guaranteed – (LWA) 114 dB(A)
Sound power level, measured – 112 dB(A)
Sound pressure level at operators ear – 104 dB(A)
Vibration
Equivalent vibration level (ahv, eq) front handle – 3.8 m/s²
Equivalent vibration level (ahv, eq) rear handle – 6.9 m/s²
