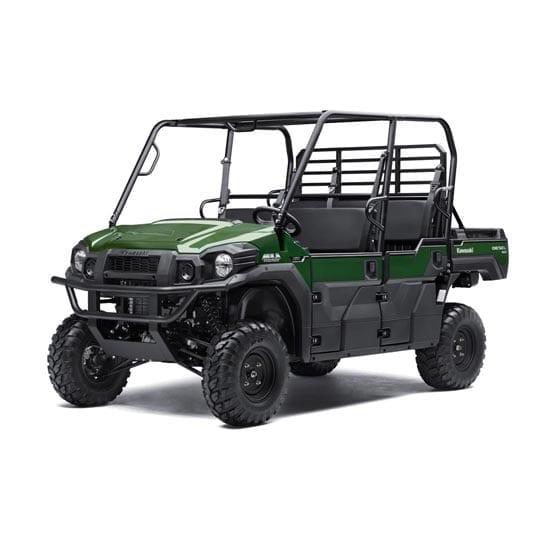

Kawasaki Mule

Kawasaki Mule

Like the PRO-FXT petrol model counterpart the six-seater PRO-DXT EPS offers “Diesel economy”, “Durability” and “Comfort and Convenience”. The diesel model was designed primarily for work applications, where their high-torque diesel engine will deliver excellent performance and allow on-site fuel compatibility. With a greater focus on cargo carrying and transportation, the PRO-DXT EPS can be transferred from a three seater features a spacious cargo bed, to a handy six-seater with ample room, making it the workhorse of choice for customers who need to transport staff and/or haul material.

The Mule PRO-DXT’s combination of Diesel economy, durability, comfort and convenience make it the industry’s most dependable outdoor partner. The PRO-DXT features Electric Power Steering, seats up to six adults with a ROPS approved Cab Frame and 3-point seat belts for added peace of mind.

Enquire Now
Category:

Description

Specifications

Engine Type: MULE PRO-DXT (KAF1000BJF)

Displacement: Liquid-cooled, 4-stroke In-line 3-cylinder diesel, OHV

Bore X Stroke: 993 cm³

Compression Ratio: 74.0 x 77.0 mm

Valve System: 23.5:1

Fuel System: In-line injection pump

Cumbustion Chamber: Swirl chamber

Starting: Electric

Transmission: Dual range (high/low) CVT with reverse

Final Drive: 2WD / 4WD, shaft, Dual-Mode Differential

Frame: Ladder type, tubular steel

Steering: Electric Power Steering (EPS)

Suspension – front: Double wishbone

Suspension – rear: Double wishbone

Ground Clearance: 260 mm

Wheel Travel – front: 222 mm

Wheel Travel – rear: (right, left) 217 mm / 220 mm

Brakes – front: Dual 212 mm discs with two-piston calipers

Brakes – rear: Dual 212 mm discs with single-piston caliper

Wheels type – front: Steel 12 inch

Wheel type – rear: Steel 12 inch

Tyre front: 26 x 9.00R12 4PR

Tyre rear: 26 x 11.00R12 4PR

L X W X H: 3,385 x 1,625 x 1,970 mm

Wheelbase: 2,345 mm

Minimum Turning radius: 4.8 m

Seat Height – front: 880 mm

Seat Height – rear: 965 mm

Fuel Capacity: 30 litres

Curb Mass: 878 kg (includes full fuel tank, all fluids at optimum levels)

Dry Weight: 843 kg

Cargo bed load capacity: 3-person mode 453 kg

Cargo bed load capacity: 6-person mode 158 kg

Cargo Bed 3-person mode: L x W x H 1,085 x 1,363 x 279 mm

Cargo Bed 6-person mode: L x W X H 560 x 1,363 x 279 mm

Towing Capacity: 907 kg

Seating Capacity: 3 or 6

Maximum Permissible Load: 717 kg

Maximum Power: 17.8 kW {24 PS} / 3,600 rpm

Maximum Torque: 52.1 N.m {5.3 kgf.m} / 2,400 rpm

Colour Timberline: Green
