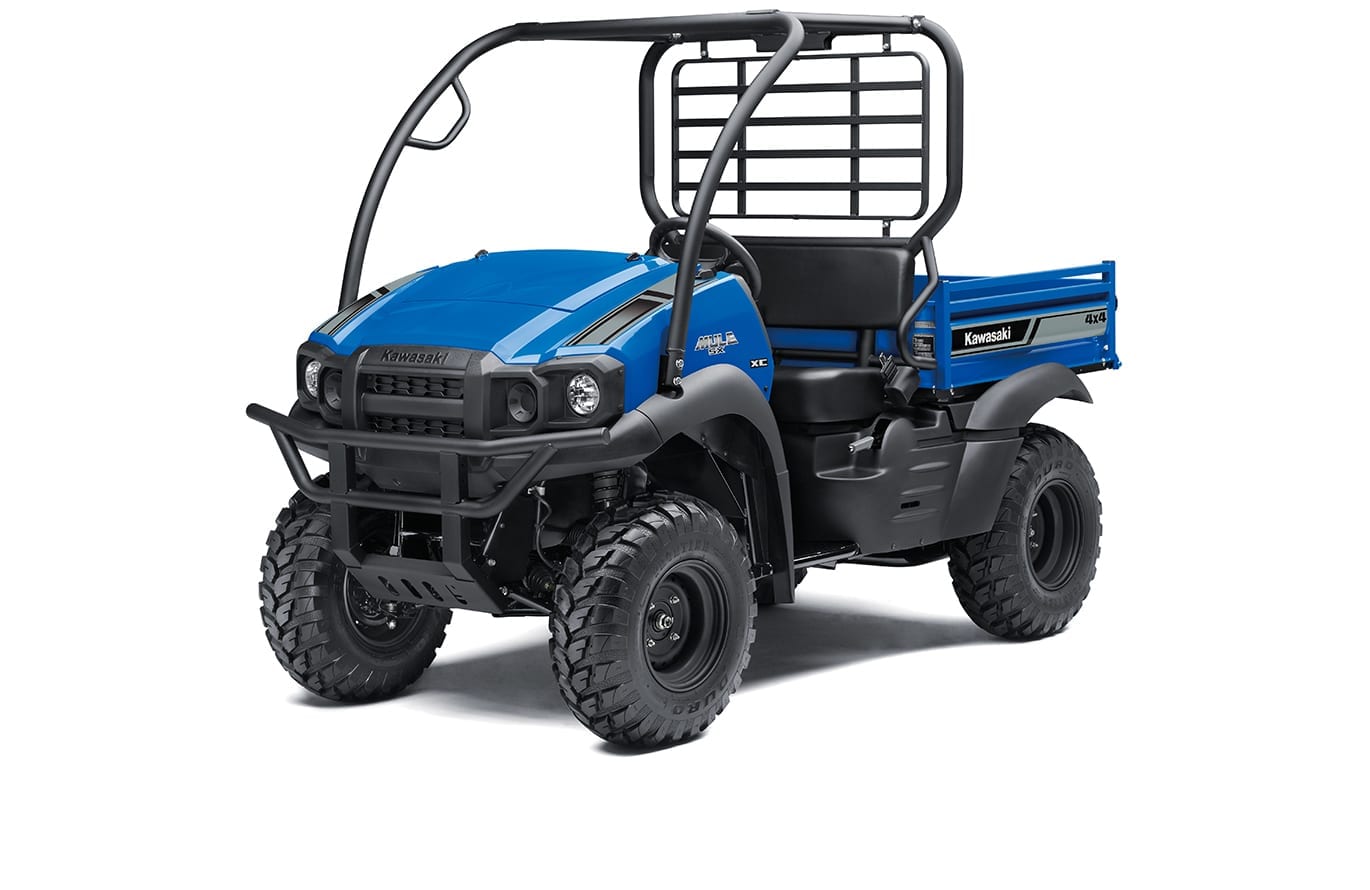

MULE SX 4×4 XC

MULE SX 4×4 XC

STAMP YOUR AUTHORITY

Kawasaki’s compact MULE models are equipped with everything they need to get the job done. Japanese durability ensures these models are built tough. The 2019 MULE SX XC model features the rugged styling of the PRO Series models, giving it a strong MULE family resemblance. A number of other PRO Series inspired features increase convenience. The line-up includes two variations: the standard model Mule SX (2WD) offer highly reliable performance in work situations; the “Bigfoot” MULE SX XC with selectable 2WD or 4WD, high and low range and locking rear differential provides added traction and increased utility potential. Kawasaki’s “little” MULE is very capably meet market needs for lightweight, compact utility vehicles capable of filling a variety of roles.

Robust construction and reliable components ensure the durability to get the job done day after day, while enjoying the great outdoors on weekends. With large wheels, tyres and 4WD the “Bigfoot” XC model is better able to ride over obstacles, increasing their potential for leisure activities. 26” bias-ply tyres contribute to superior off-road handling. The massive tyres also add to the rugged, sporty image. Wheels feature larger rims: 12” instead of 10”. Wider track offered by the larger tyres contributes to riding stability.

Enquire Now
Category:

Description

Specifications

Model MULE SX XC (KAF400KKF)
Engine Type Air-cooled, Single cylinder
Displacement 401 cm³
Bore X Stroke 82.0 x 76.0 mm
Compression Ratio 8.6:1
Valve System OHV
Fuel System Carburettor: Nikki 6C1026
Ignition Magneto & transistor
Starting Electric
Transmission 2-speed automatic CVT, forward / reverse
Final Drive Shaft selectable 2WD/4WD, dual-mode differential
Frame Ladder type, tubular steel
Suspension – front Independent, MacPherson strut
Suspension – rear Unit swing, dual shocks, adjustable spring preload
Ground Clearance 190 mm
Wheel Travel – front 78 mm
Wheel Travel – rear 79 mm
Brakes – front Dual hydraulic drums
Brakes – rear Dual hydraulic drums
Wheels type – front Steel 12 inch
Wheel type – rear Steel 12 inch
Tyre front 26 x 9.00-12 Tubeless
Tyre rear 26 x 9.00-12 Tubeless
L X W X H 2,710 x 1,335 x 1,865 mm
Wheelbase 1,780 mm
Minimum Turning radius 3.6 m
Seat Height 840 mm
Fuel Capacity 16 litres
Curb Mass 491 kg (includes full fuel tank and all fluids at optimum levels)
Cargo bed load capacity 181 kg
Cargo Bed L x W x H 905 x 1,040 x 245 mm
Towing Capacity 500 kg (Includes trailer and load)
Seating Capacity 2
Maximum Permissible Load 408 kg (including occupants and cargo)
Maximum Power 9.9 kW {13.5 PS} / 4,000 rpm
Maximum Torque 29.7 N.m {3.0 kgf.m} / 2,400 rpm
Colour Vibrant Blue
Warranty 36 months – Terms and Conditions apply – Discuss with a Kawasaki Dealer
