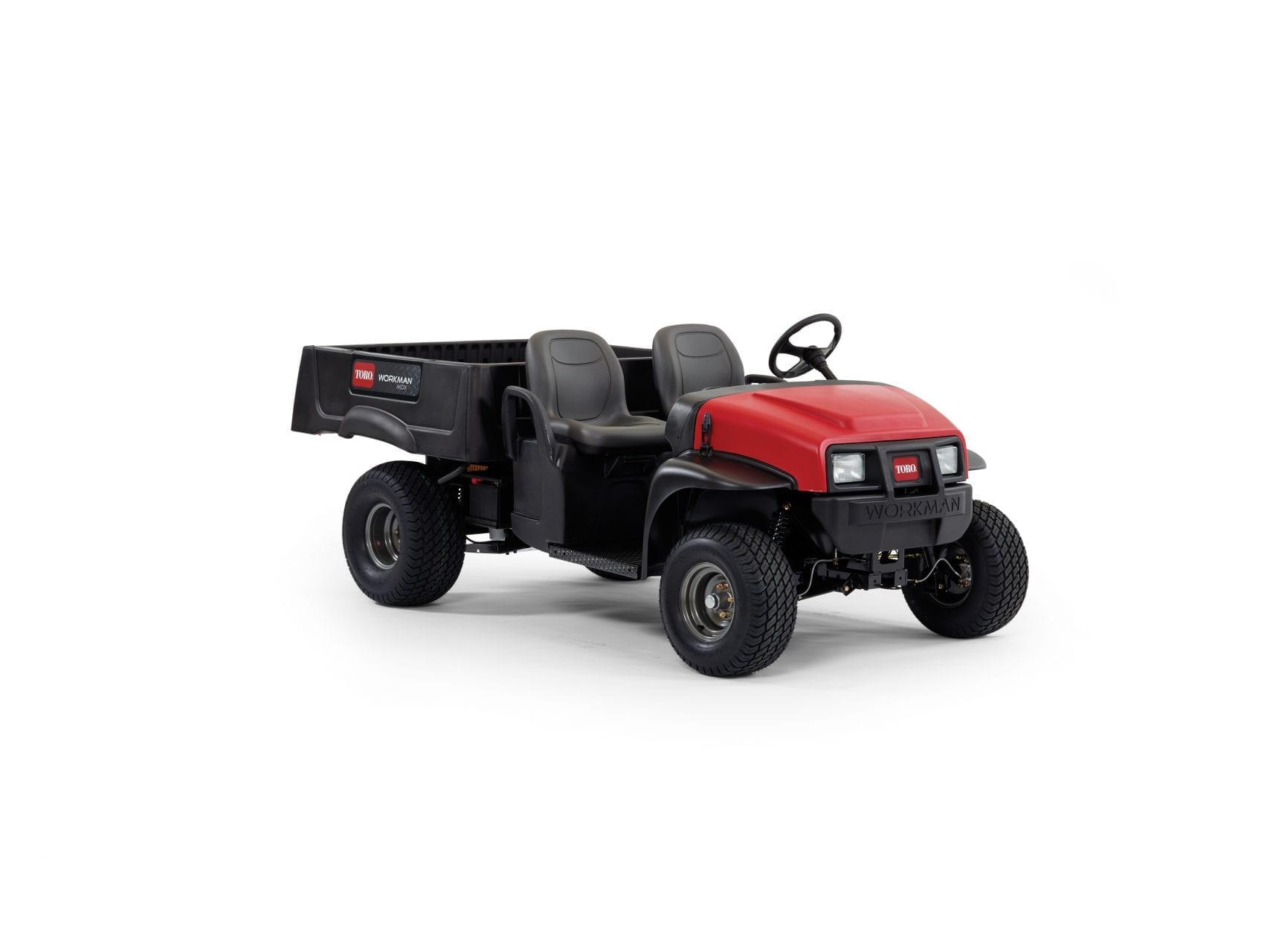

toro Workman® MDX

toro Workman® MDX

The Workman® MD Series with SRQ™ combines a coil-over shock absorber suspension design with an Active In-Frame™ twister joint. These features deliver superior ride quality for optimum operator comfort and control.

The upgraded suspension and steering make the new Workman MDX easier and more comfortable to operate and control. Improved braking performance and the double-walled polyethylene tray for better uv protection are some of the features in the new Workman MDX. The new rack and pinion steering reduce steering effort by over 60%, while also tightening the feel. The hefty payload capacity and four-wheel hydraulic brakes combine with SRQ to provide enhanced productivity to tackle the toughest jobs.

The Workman MDX has the power and versatility to help you do more, with more!

Enquire Now
Category:

Description

Features

SRQ™ – Superior Ride Quality

SRQ™ combines a coil-over shock absorber suspension design with the Active In-Frame™ twister joint. Front suspension is Independent A-Frame design with coil-over shock absorbers. Rear suspension is Swing Arm design with coil-over shock absorbers. Benefits include operator comfort, safety, reduced operator fatigue, and productivity and efficiency gains.

Active In-Frame™ Twister Joint

The innovative Active In-Frame™ Twister Joint allows each axle to react independently to the terrain. The result is the smoothest ride over the most undulating surfaces. All four wheels maintain constant contact with the ground for better traction, stability and less potential turf damage.

Operator/Passenger Platform

Extended front frame for additional leg room to enhance SRQ™ benefits of operator and passenger comfort.

Payload Capacity

The Workman® MD Series utility vehicles have the highest total payload capacity in their class for maximum productivity. Get more jobs done in less time. MDX: 750 kg.

Rugged Body Styling

New rugged injection-molded body styling. Latch opened hood design for ease of access for technicians.

Durable Plastic Cargo Bed

Double-walled polyethylene tray for better uv protection.

Engine Power

480 cc, 16 hp (11.93 kW) air-cooled, two-cylinder, Briggs & Stratton® Vanguard®

Specifications

Engine 480 cc, 16 hp (11.93 kW) air-cooled, two-cylinder, Briggs & Stratton®Vanguard®
Ground Speed 25.7 km/h governed
Front Suspension Independent “A”- Frame with coil over shock absorbers
Rear Suspension Trailing arm with coil over shock absorbers
Frame Welded steel channel and tube in body construction. Frame surfaces are dipped e-coat. Body and bed constructed of dent and corrosion-resistant polyethylene.
Fuel Capacity 24.6 litres
Starting Pedal start
Tyres Front: 22 x 9.5-10, 4-ply
Rear: 24 x 12-10, 4-ply
Cargo Bed Length: 113 cm
Width: 124.5 cm
Height: 26 cm
Payload Capacity: 567 kg
Total Vehicle Payload Capacity 750 kg
Towing Capacity 545 kg with heavy-duty hitch
Instrumentation Hour meter, low oil pressure warning light, accessory power port. Dash has 2 cup holders, radio holder and glove box storage.
Warranty 2 year or 1500 hour limited warranty. Refer to operator’s manual for further details.
