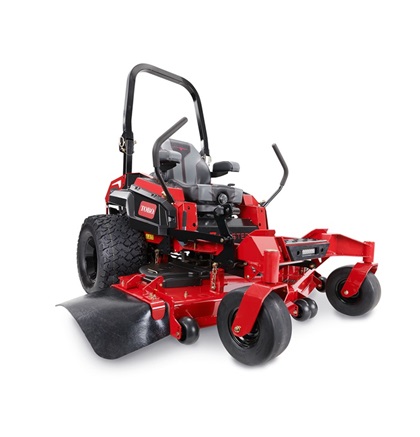

Z Master 4000 Series 60″ (152cm)

Z Master 4000 Series 60″ (152cm)

The Z-Master 4000 zero-turn mower is a force to be reckoned with. Built tough with a powerful 25.5 hp* Kawasaki FX801V engine, heavy-duty commercial grade hydros, flat-free semi-pneumatic caster tyres, 66 cm Voodoo Trac? Tyres, and a 152 cm (60?) 7-Gauge High-Strength Steel TURBO FORCE? cutting deck paired with I-beam front end, tubular chassis and bumper to take on any job. Easy on and off with a deck step plate and anti-slip floormat. With the deluxe suspension seat, an hour meter, USB ports, phone holder, cup holder, and for after-hours work, powerful illumination with LED headlights, you?ll have everything you need to help you power through long days.

Enquire Now
Category:

Description

Features

66 cm (26″) Voodoo Trac? Drive Tyres
Get the ultimate in agressive tread and styling and survey the task from a higher-vantage-point with 66 cm (26″) Voodoo Trac? Drive Tyres.

Up to 19.3 km/h
Get more done with ground speeds up to 19.3 km/h without reducing cut quality.

LED Headlights
Powerful illumination for after-hours work.

TURBO FORCE? Cutting Deck
Enjoy years of reliable performance with a fully tubular frame and 7-gauge steel deck.

Rubber Discharge Chute
Trim close without damaging landscape structures or your chute.

Deck Step Plate
Keep your grip and remove excess mud from your shoes with a deck step plate.

Clear Sightline to Rear Tyres
Clear sightline to rear tyres for enhanced contro so you can clear a path without tyre spin.

Dual Capture Anti-Scalp Rollers
Intelligently engineered dual capture anti-scalp rollers ensure the highest quality of cut in the harshest terrain you can throw at it.

Phone and Cup Holder
Keep your phone and drink at arm’s reach.

USB Ports
USB ports to help you stay charged on the job.

Specifications

Engine
25.5 hp* Kawasaki FX751 (852cc) with Heavy-Duty Donaldson? Canister-Style Air Cleaner

Fuel Capacity
37.9 litres

Blade Tip Speed
18,500+ ft/min

Blade Type
.5 cm (.204″) Heat-Treated Steel

Caster Tyres
38 x 16.5 ? 15.2 cm (15″ x 6.5″ – 6″) Pneumatic

Clutch
Electromagnetic

Deck Design
152.4 cm (60″) 7-Gauge High-Strength Steel TURBO FORCE?

Discharge Chute
Rubber

Drive Tires
Voodoo Trac? 66 x 30.5 ? 30.5 cm (26″ x 12″ ? 12″)

Engine Displacement
852cc

Foot Operated Height of Cu
Standard, 3.8 ? 12.7 cm (.6 cm increments), 1.5″ – 5.5″ (.25″ increments)

Ground Speed
Up to 19.3 km/h

Horsepower
25.5 hp*

Hour Meter
Standard

Ignition
Electric

Lighting
LED Lights Standard

ROPS
Folding

Seat
Deluxe Suspension

Spindle Bearings
Maintenance-Free

Spindle Housing
22.9 cm (9″) Diameter Aluminium

Steering Controls
3.6 cm (1.4″) Diameter Grips; Adjustable, Dampened

Transmission
ZT-4400 Integrated Pumps & Wheel Motors

Warranty
3-Year / 2-Year No Hour Limit**

Related products

  •
    Quick View

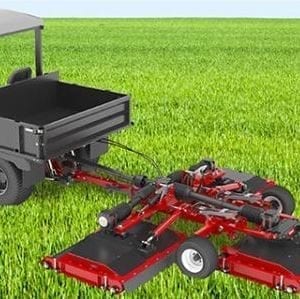

    Commercial Mowers Groundsmaster® 1200 (31905)

    The Groundsmaster® 1200 delivers an unparalleled combination of productivity, durability and superior cut. It features a 3.7 m width of cut and can mow up to 3.53 hectares/h at 9.7 km/h per hour. Remaining true to Groundsmaster’s unmatched reputation of durability, the 1200 was designed for years of reliable mowing. Its spindles are the same as Toro’s large rotaries and capable of withstanding the roughest conditions. The bi-directional impact resistant system provides additional protection to the wing decks. The Groundsmaster® 1200’s independently articulating decks hug undulations for an exceptional finish. Combine this with the dual roller design, the Groundsmaster 1200 delivers a high-quality cut and rich turf striping in most conditions.

    Productivity, durability and exceptional cut. That’s what makes the 1200 the only pull behind worthy of being a Groundsmaster®.



    For further information or pricing please call Ben – 0407 950 382
  •
    Quick View
    Commercial Mowers Groundsmaster® 7210 (30487TC)

    The Groundsmaster® 7210 zero turn rotary mower is rugged enough to be called a Groundsmaster®. It has powerful Kubota® 35 hp (26.1 kW), 3-cylinder, liquid-cooled diesel Turbo Charged engine to get the job done well. Durable heavy-duty 7-gauge welded steel deck construction and the industry’s toughest spindle assembly provide long life. Use the Groundsmaster® 7210 for more than mowing with the added versatility for grooming infields and blowing leaves.

    Groundsmaster® 7210 model can be configured with one of the following decks:

    152.4 cm side discharge deck
    157.5 cm base deck which can be set up as either a rear discharge deck or Guardian® Recycler® deck
    183 cm base deck which can be set up as either a rear discharge deck or Guardian® Recycler® deck
    183 cm side discharge deck
    254 cm rear discharge deck (does not suit cab model)

    Model 7200 (30495TC) shown



    For further information or pricing please call Ben – 0407 950 382
  •
    Quick View

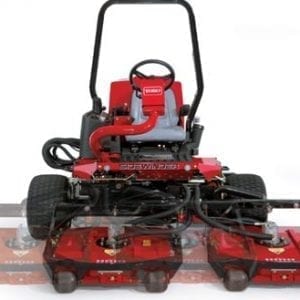

    Commercial Mowers Groundsmaster® 3500-D (30807)
